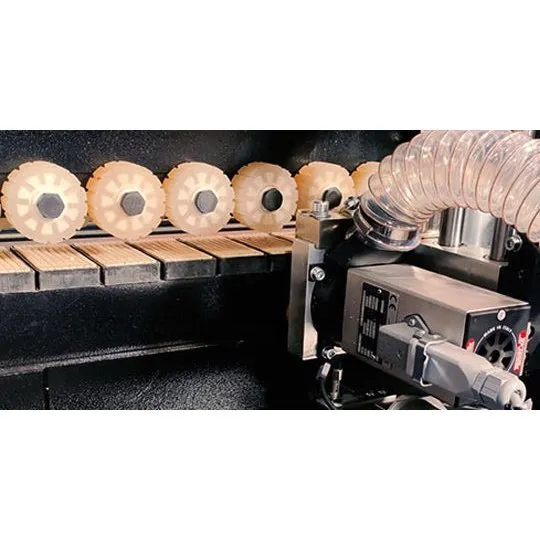

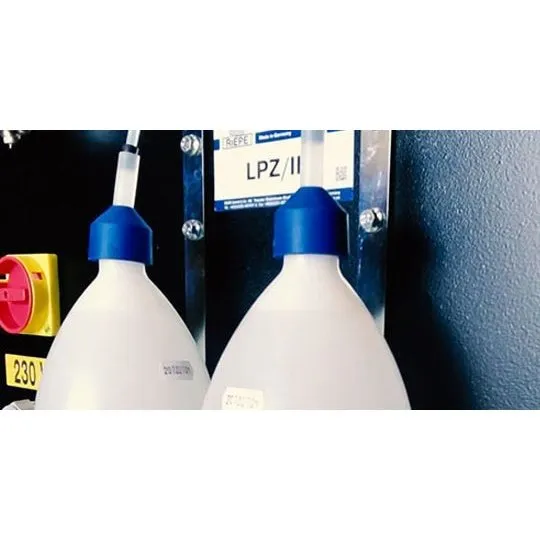

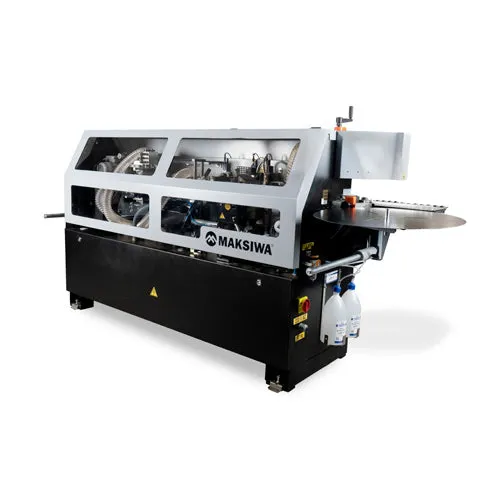

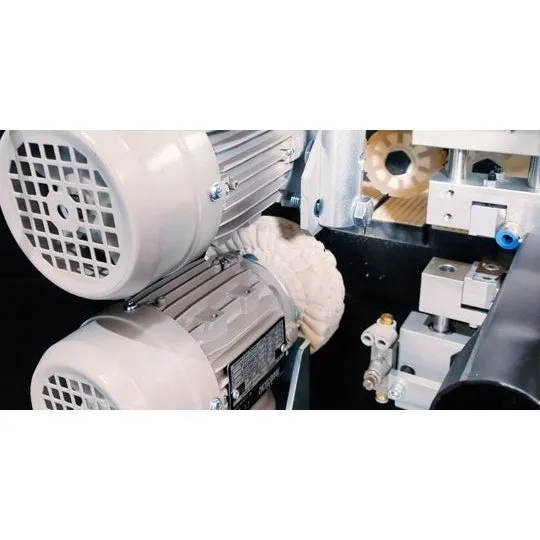

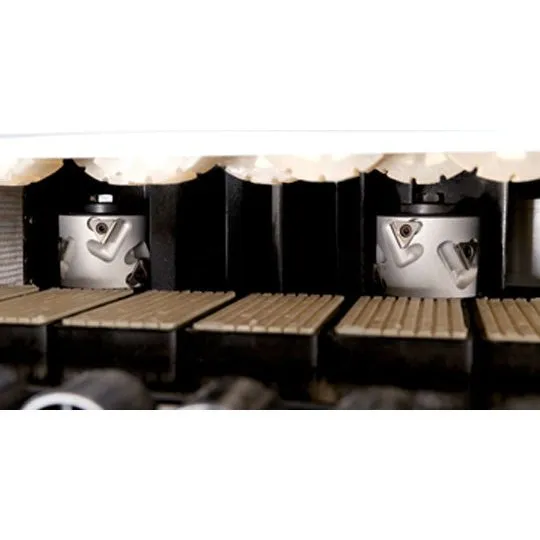

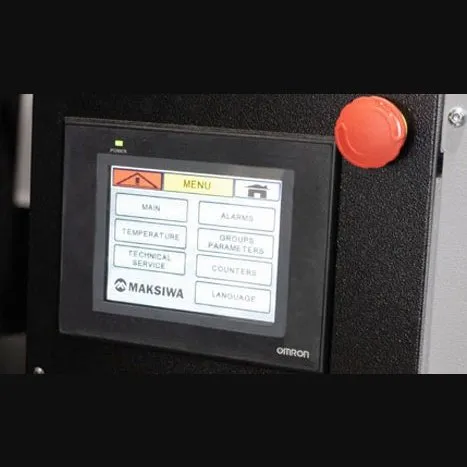

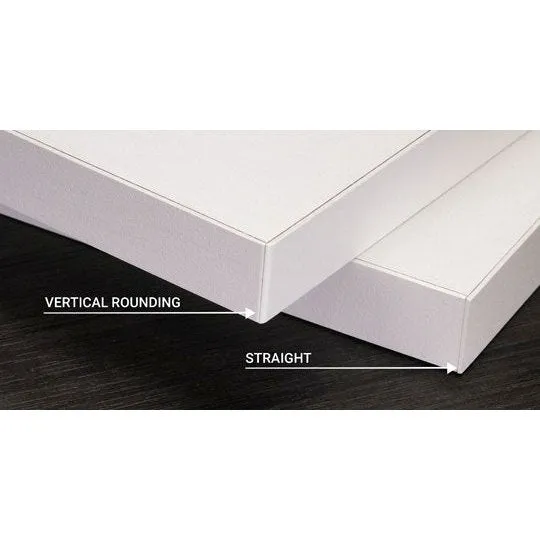

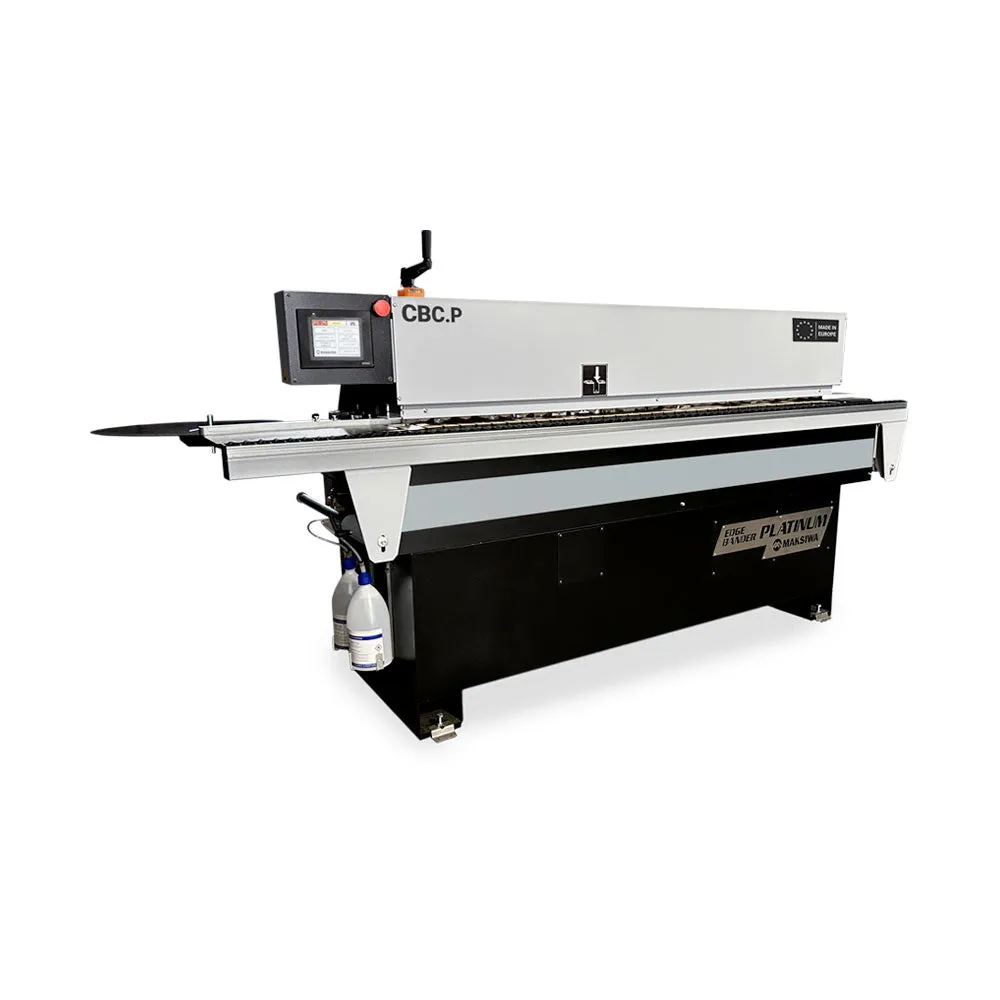

The Maksiwa CBC.P Platinum Automatic Edgebander, is an industrial grade, heavy duty machine that provides high performance and quality finish without compromising space in your shop. With its affordable price, this machine is now within reach of more woodworkers than ever before. Equipped with pre-milling, vertical rounding, glue scraper unit, buffing unit, top and bottom trimming, XMELT glue pot system (works with EVA and PUR Adhesives easy drainage system), C.A.S.S cleaning agent spraying system, edge tape 0.4-3mm, panel thickness 10-50mm, 9HP 1PH 220V. Full PCL Touch Screen Control Panel with user friendly set-up and maintenance makes the CBC.P the perfect addition to the demanding woodworker looking to improve their craft.
Specifications
| CBC.P SPECIFICATIONS | SAE | METRIC |
|---|---|---|
| Automatic Feeding speed | 23 ft/min | 7 m/min |
| Panel thickness Min/Max | 13/32” - 1 31/32” | 10 - 50 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157" - 0.118" | 0.4-3mm |
| Glue Pot Capacity | 3.3lbs | 1.5 kg |
| Max Edgebanding Height | 2" | 51 mm |
| Minimum panel width | 3" | 75 mm |
| Minimum panel length | 7 7/8" | 200 mm |
| Extendable Panel Support Rail Length | 102" | 2607 mm |
| Extension table Max Width | 54" | 1371 mm |
| Size of Dust Collector Ports | 6" | 150mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 13.4 SCFM @ 87PSI | 0.6 Mpa |
| Edgebanding coil Support Diameter | 59" | 1498 mm |
| Recommend Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |

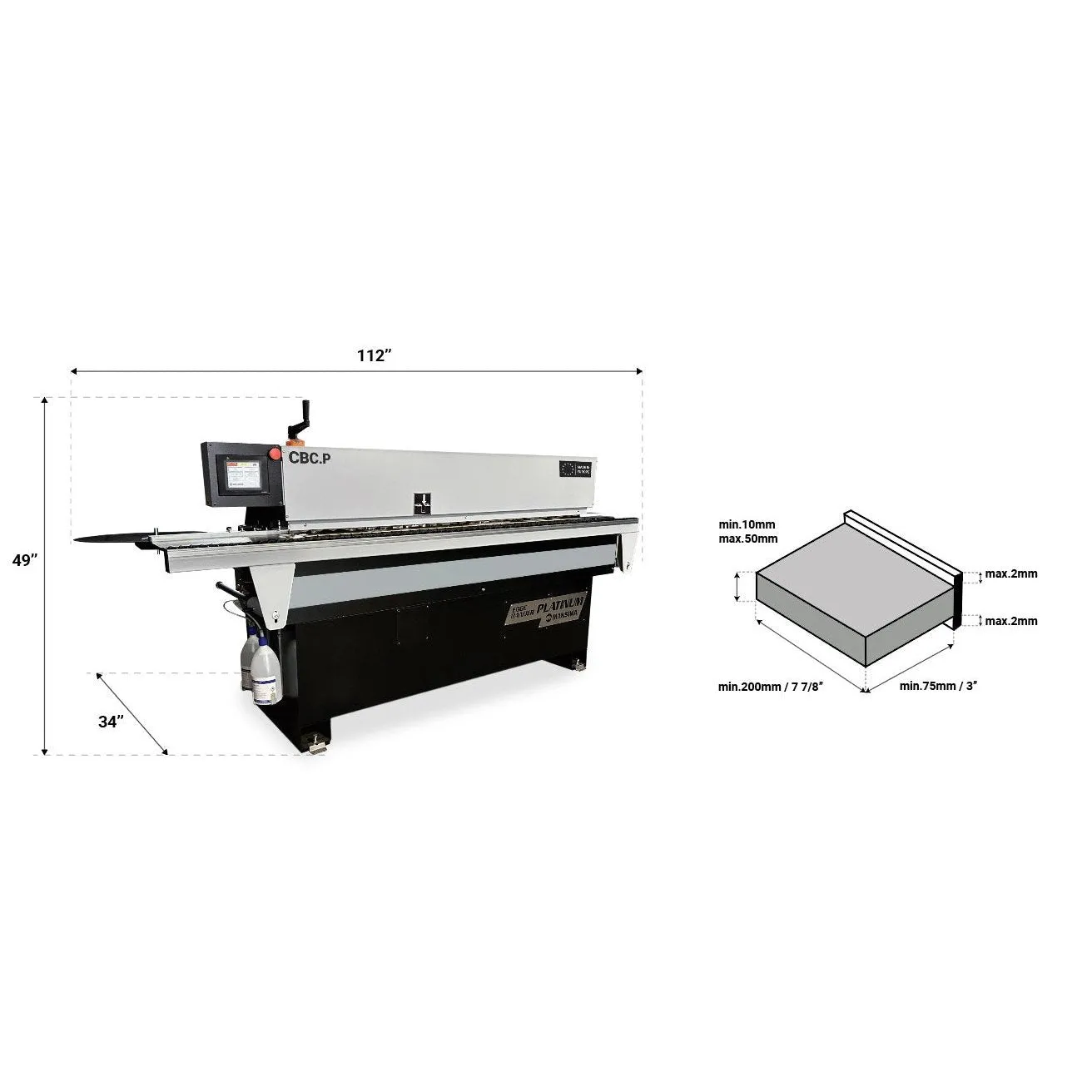

| Max. machine dimensions (LxWxH) | 112”x 34”x 49” | 2839 x 864 x 1232 mm |
| Machine dimensions w/ Caster Wheel (LxWxH) | 112"x 46-1/4"x 56" | 2839 x 1174 x 1422 mm |
| Net weight | 1719 LBS | 780 KGS |
| Shipping dimensions (LxWxH) | 86” x 36” x 57” | 2184 x 914 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA / PUR | Granulated Hot-Melt EVA / PUR |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Sound Rating | 80 dB | 80 dB |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 30 Amps 60 Hz |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Sound Rating | 80 dB |
| Technical Info | CBC Flex | CBC.E | CBC.MR | CBC/2.MR | CBC.T | CBC.P |
|---|---|---|---|---|---|---|
| Eletrical specs | 1 Phase 110V 550W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A |
| Feeder Speed | 0-19 ft/min | 0-18 ft/min | 0-26 ft/min | 0-26 ft/min | 0-16ft/min | 23ft/min |
| Edgebanding Thickness | 0.4 – 1mm | 0.4 – 2mm | 0.4 – 2mm | 0.3 – 2mm | 0.4 – 3mm | 0.4 – 3mm |
| Glue Temperature | 130° to 180° C | 130° to 180° C | 130° to 180° C | 130° to 180° C | 180° to 210° C | 180° to 210° C |
| Glue Pot Type | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | High Temp. Granulated Hot-Melt EVA | Granulated Hot-Melt EVA / PUR |
| Workarea | - | 39 3/8" x 15 3/4" | 101 3/4" x 15 3/4" | 101 3/4" x 15 3/4" | 78 3/4" x 10 2/5" | 112"x34" |
| Max Edgebanding Height | 1/2" to 1 7/8" | 3" | 3" | 3" | 2" | 2" |
| Panel Thickness | 1/2" to 1 7/8" | 3" | 3" | 3" | 12-45mm | 10-50mm |
| Weight | 21 Lbs | 114 Lbs | 242.5 Lbs | 330 lbs | 1025 Lbs | 1719 Lbs |
| Machine Dimension | 11" x 14" x 13 1/2" | 47" x 31" x 42" | 101 3/4" x 35 1/2 x 43" | (101 3/4") 58" x 43" x 43" | 112" x 63" x 51" | 112" x 156" x 49" |
| End Trim | - | Manual | Manual | Manual | Pneumatic | Pneumatic |
